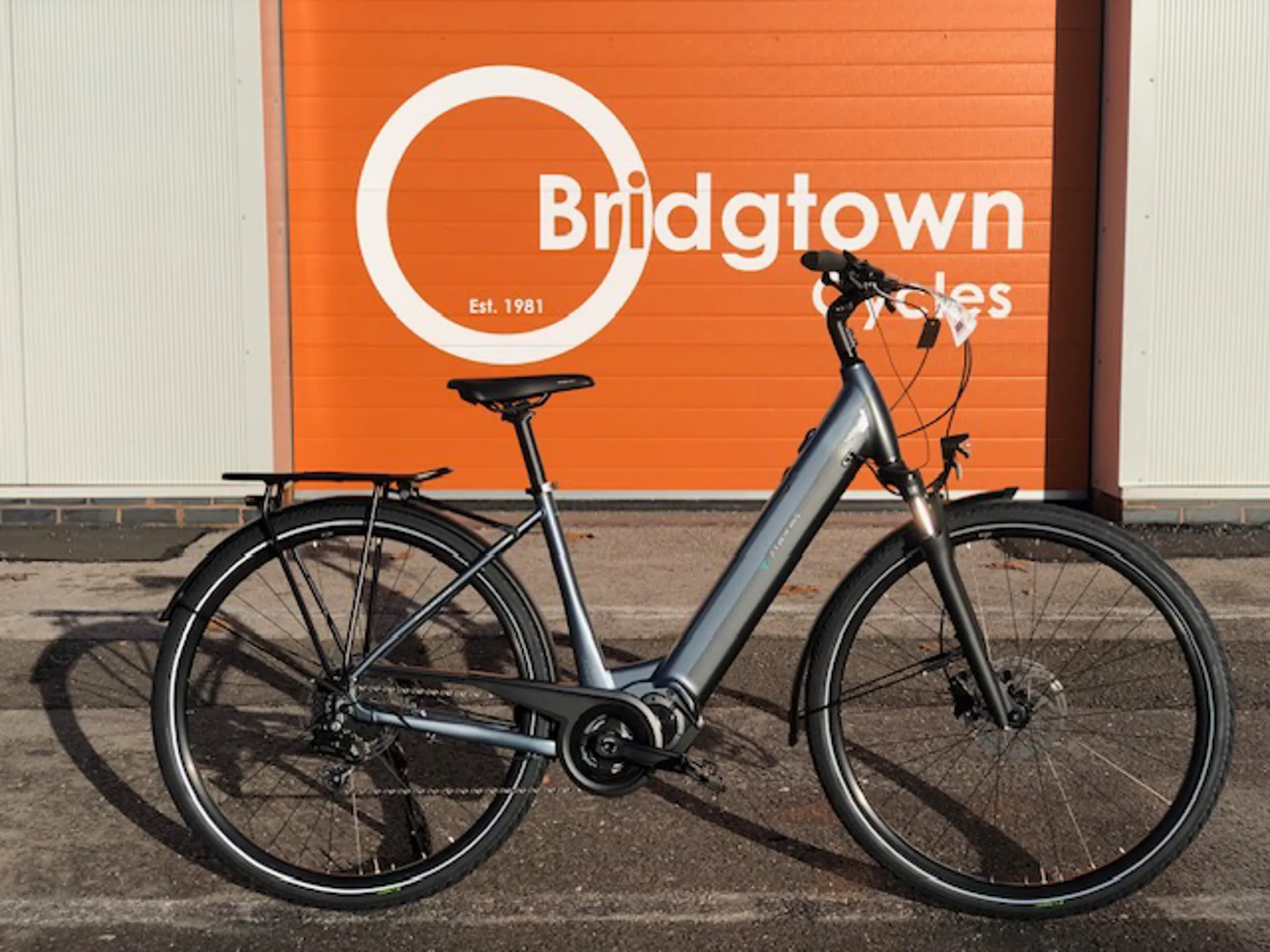

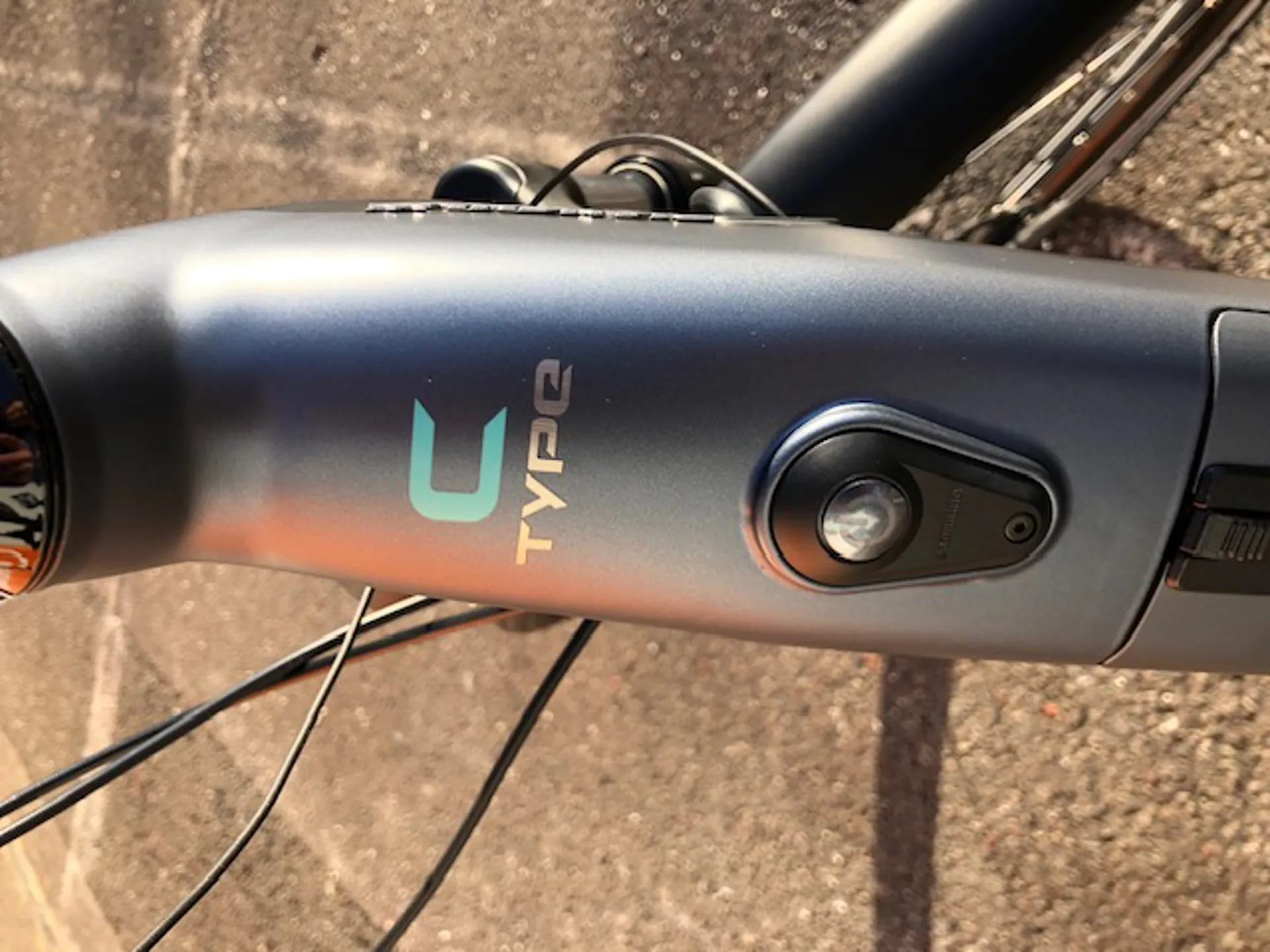

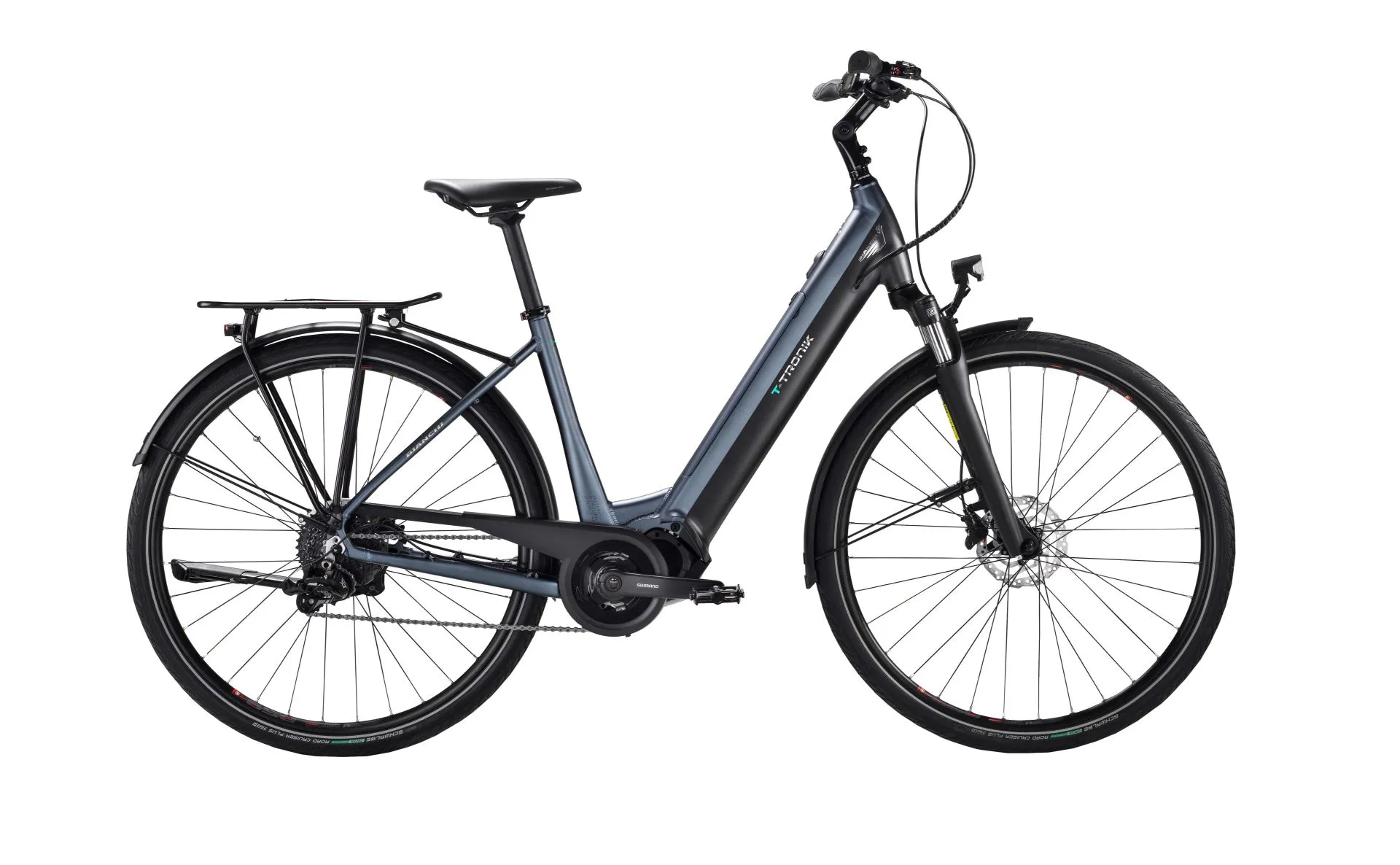

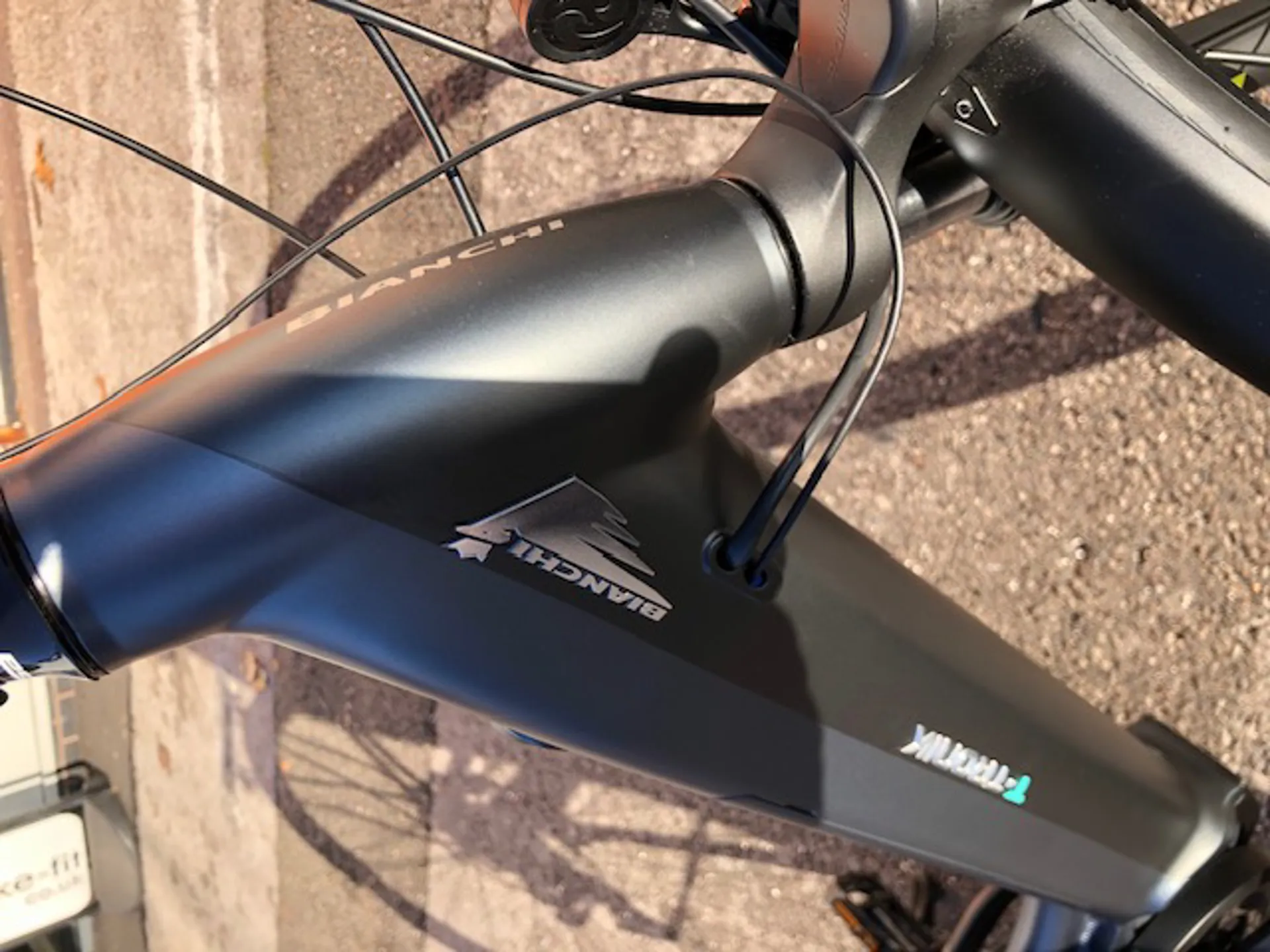

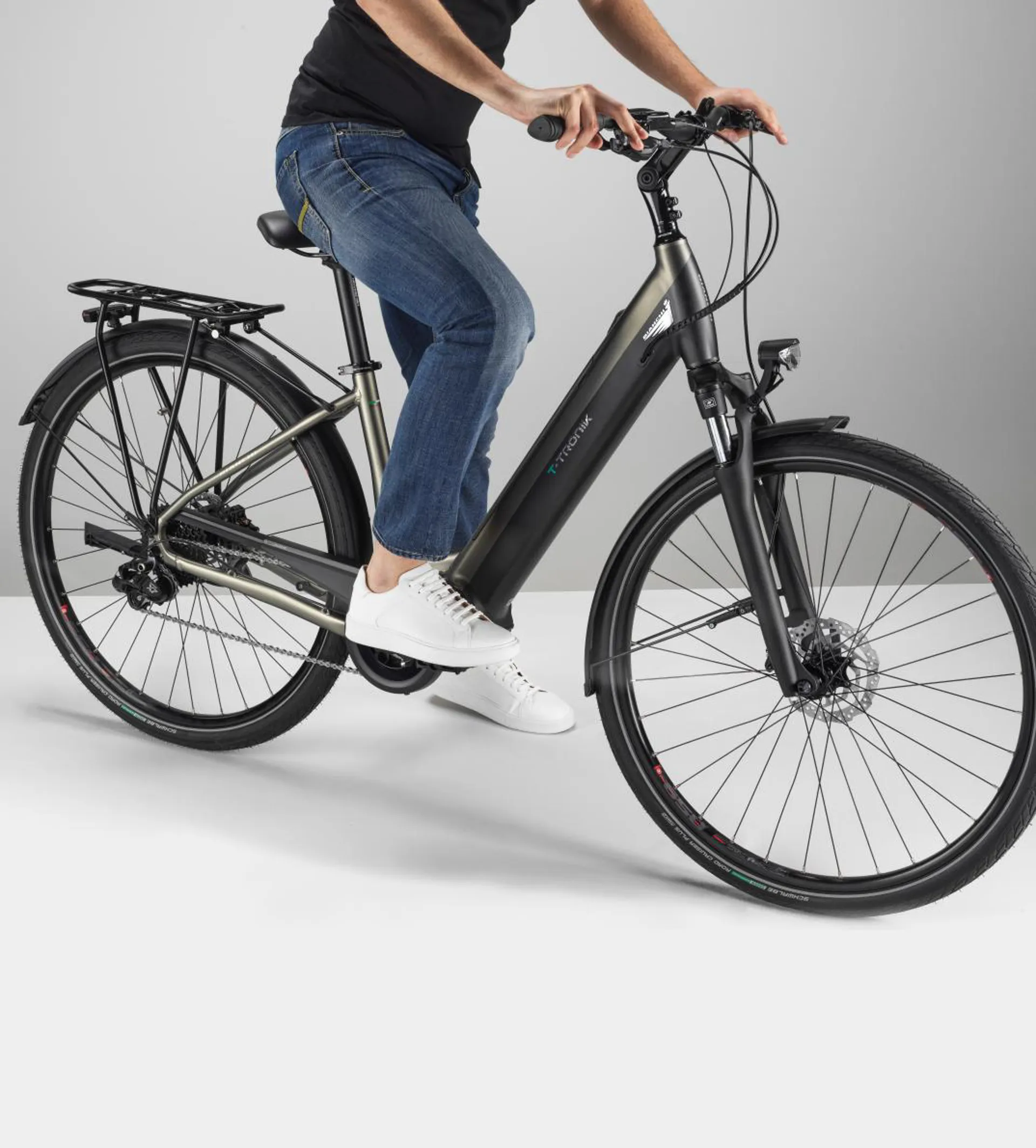

Frame | Bianchi T-Tronik C-Type Frame 28" Urban, suspended fork geometry, alu PG 6061 32/37 Max shell, disc brake, O.L.D.135mm, D/T battery, size - 43/47 |

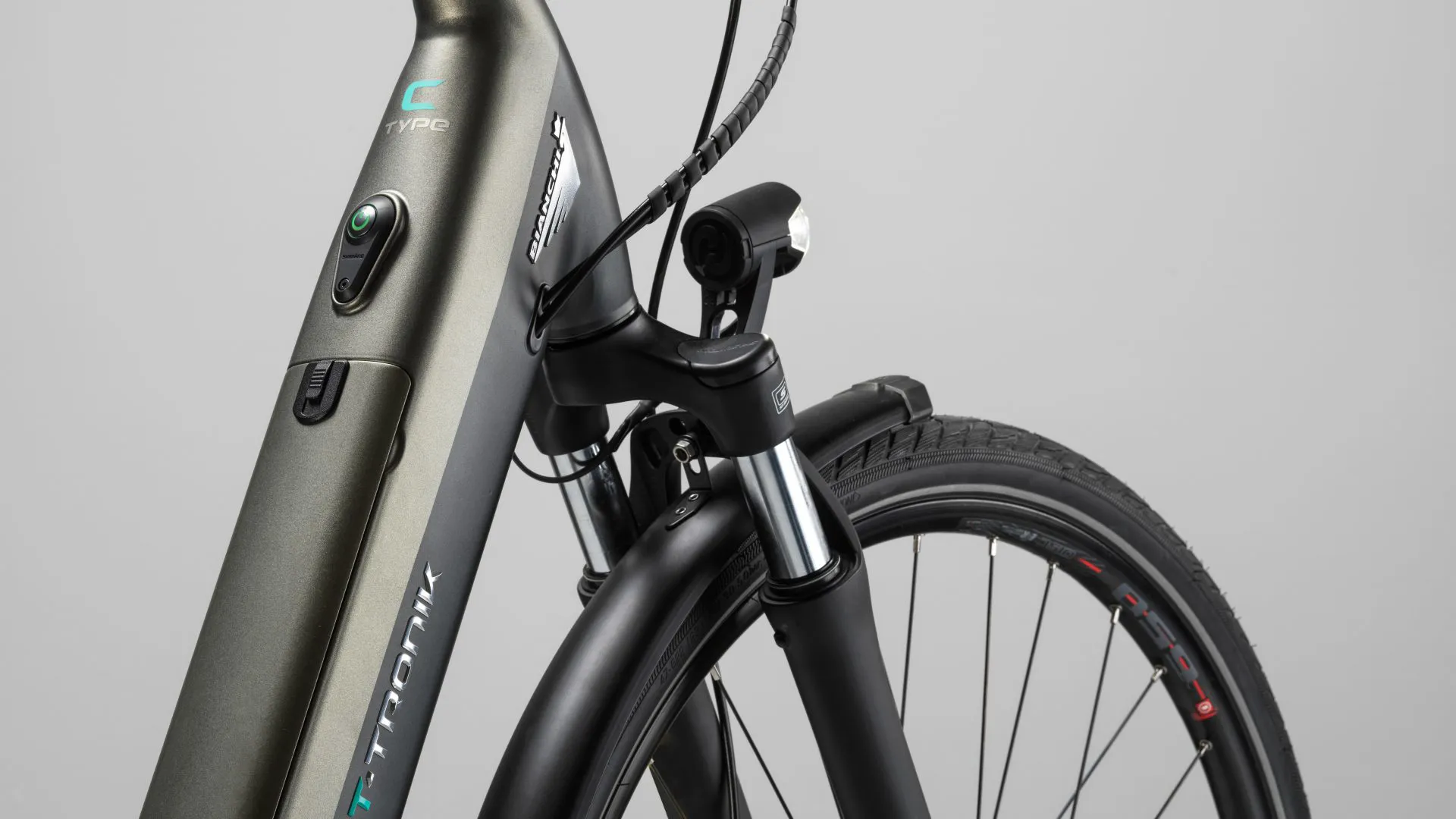

Fork | Suntour SF15-NEX-E25-DS-700C-63 post mount disc brake, 1.1/8"", travel 63mm, compatible with mudguard, OLD 100mm, quick release type |
Headset | FSA 1.1/8" 44H-N10P |
Bottom Bracket | Included with motor unit |
Stem | Velomann, 28.6mm steerer ID Clamp, 31.8mm |

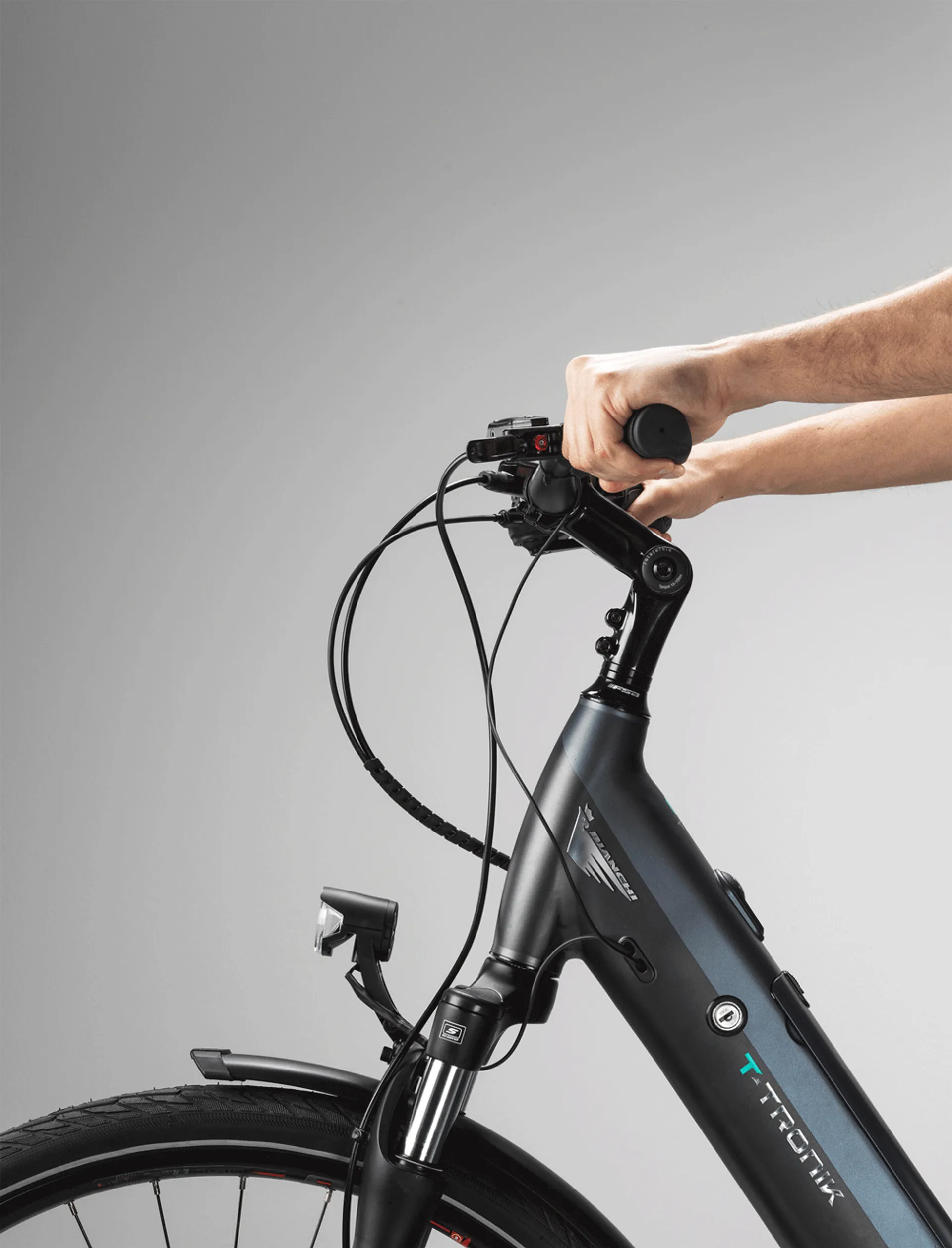

Handlebar | Velomann 31.8mm, 680mm width, 20mm rise, 15° sweep |
Grips | Herrmans GRIPset Oxy DD29BR/BL 130mm/130mm black-black, 22mm diameter |
Front Brake | Radius BH-M960, 900mm hose length, direct mount with adapter, Radius rotor RT900, 160mm, Center Lock |

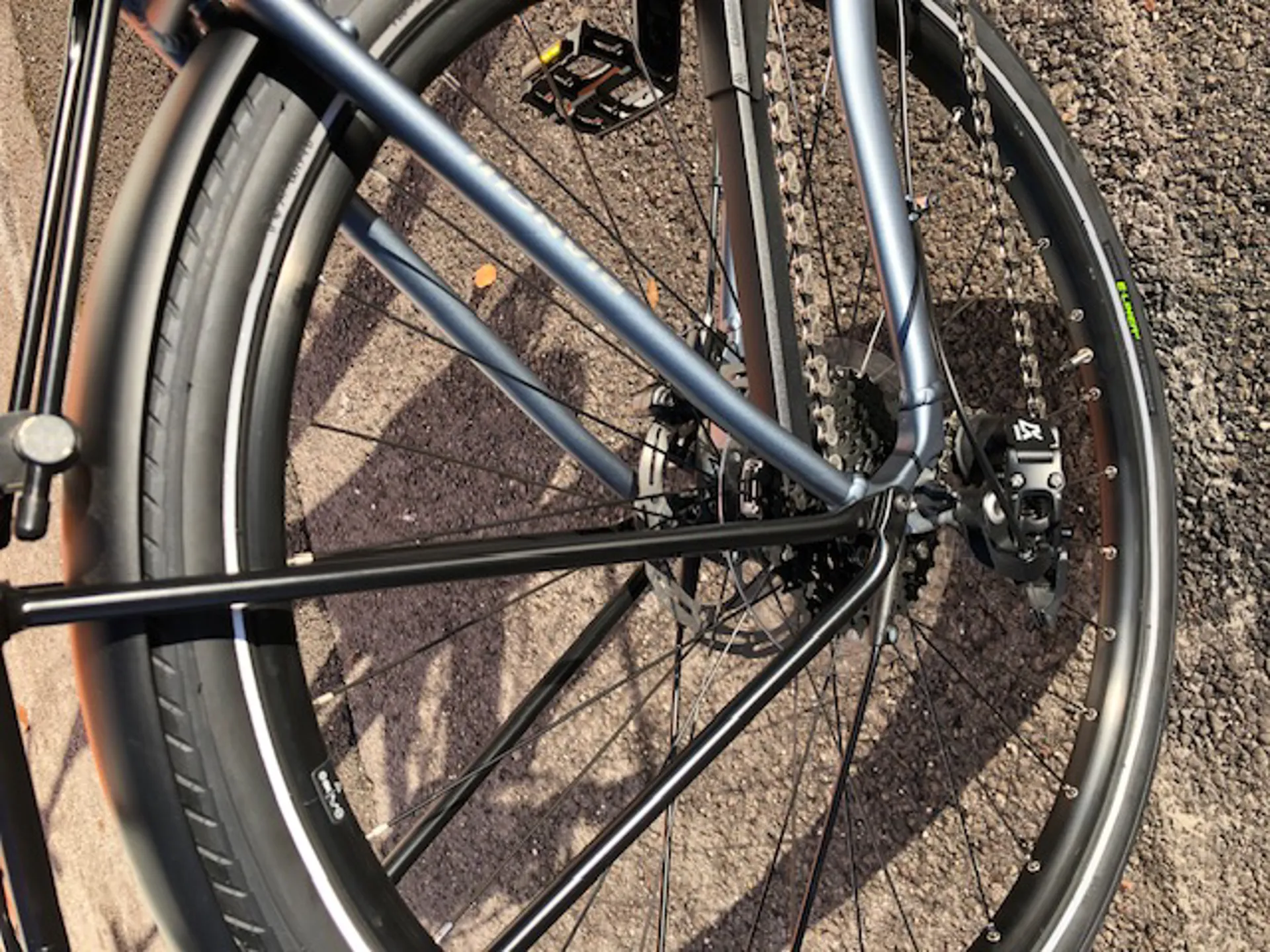

Rear Brake | Radius BH-M960, 1700mm hose length, direct mount, with J-kit, with adapter, Radius rotor RT900, 160mm, Center Lock |
Brake Levers | Radius, hydraulic |
Rear Derailleur | SunRace, 9-speed, maximum 42T |
Shift Levers | SunRace DLE903N, 9-speed, with optical gear |
Chain | KMC e9s EPT, 9-speed |
Cassette | SunRace, 9-speed |
Crankset | FSA SMN E-Bike Forged Crankset, 170mm crank length, SM-CRE61, 38T, for chainline 46.5mm |
Front Wheel | Velomann 29", 23-622, 32-hole black |
Rear Wheel | Velomann 29", 23-622, 32-hole black |
Front Tyre | Chaoyang E-Liner City 700x45c, 60tpi, clincher |
Rear Tyre | Chaoyang E-Liner City 700x45c, 60tpi, clincher |
Saddle | Selle Royal, Essenza |
Seatpost | Velomann, length 350mm, diameter 31,6mm, Al2014 shaft and alloy head |
Accessories | SKS Mudguard profile A60S, internal cable routing on the rear mudguard, secuclip/esc clip, protector on front and rear tail, protector on front mudguard / Ursus R81 WAVE REAR, 28" kickstand, 40mm fixing plate (load 35kg) / Racktime rear carrier, RT Eco 2.0, 28", black with round stay 350mm / Herrmans Mr GO front light / Axa Juno rear light |
Range | 60 miles (depending on rider weight, conditions and assist level) |

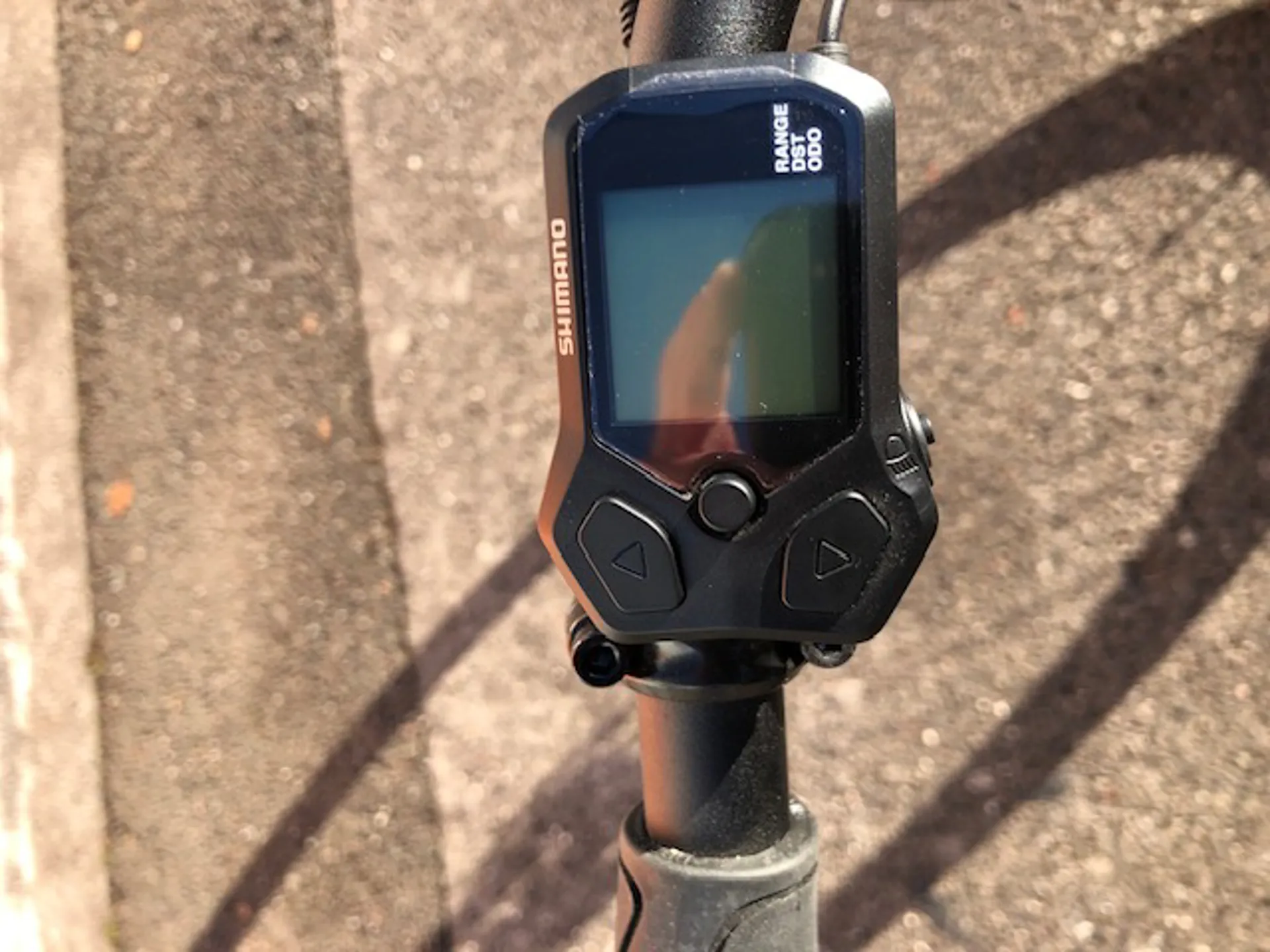

Motor | Shimano E6100 250W, torque 60Nm |

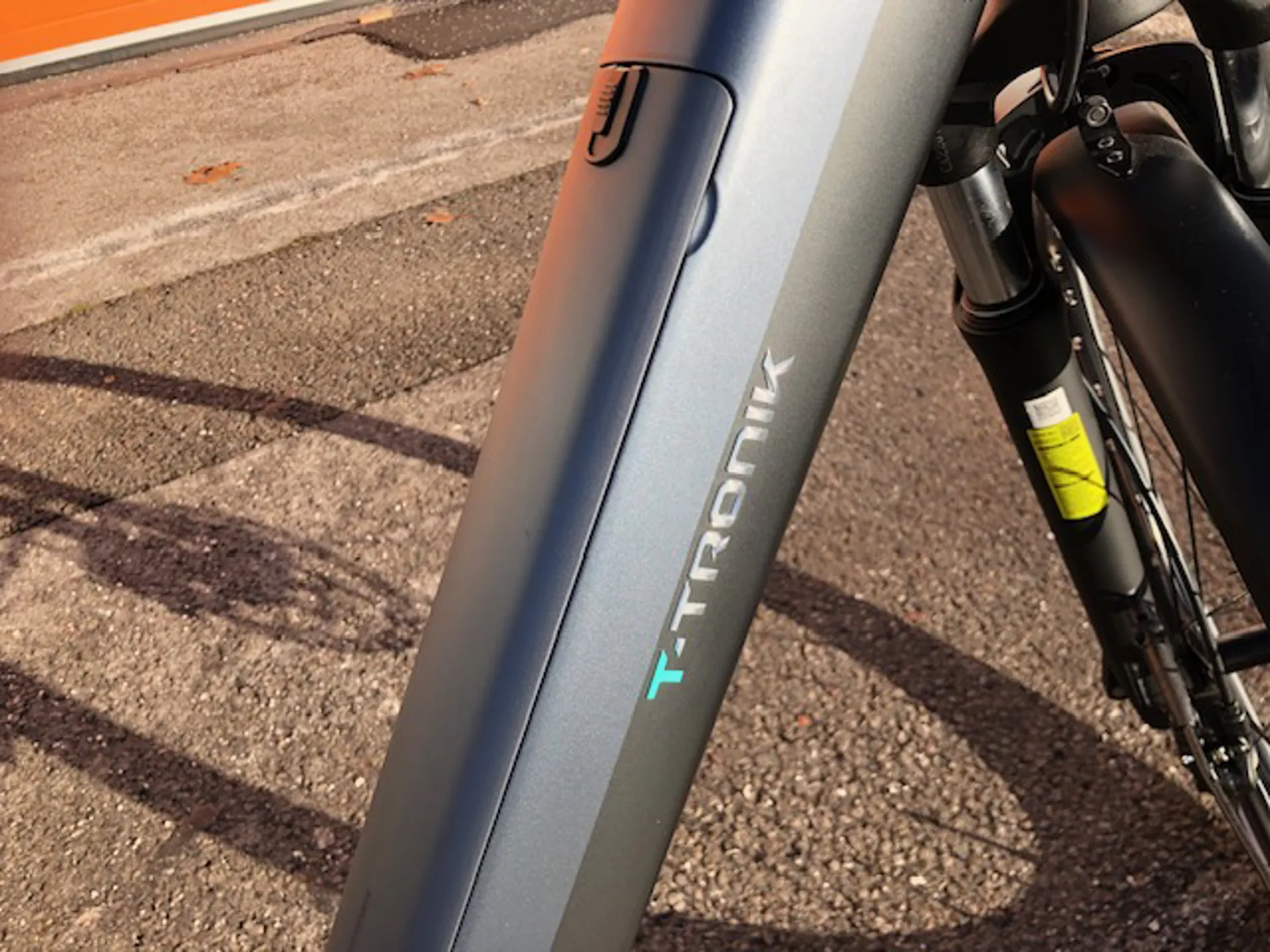

Battery | 417Wh Phylion integrated battery |
Electric assisted speed limit | 15.5 mph / 25 km/h |
